GLOSO Marine Grade Double Row Stainless Terminal Block

About this item

• GLOSO Double Row Stainless Terminal Block 2-14P

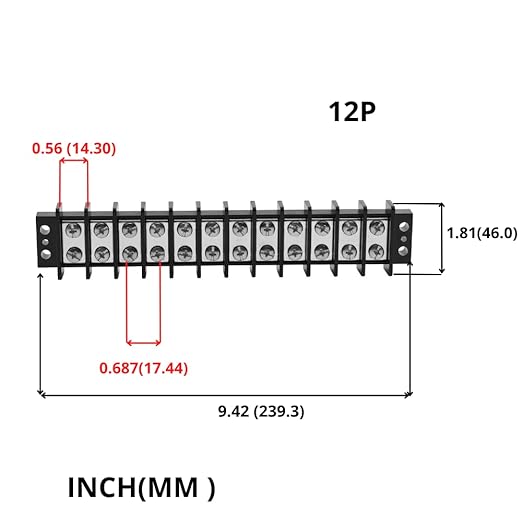

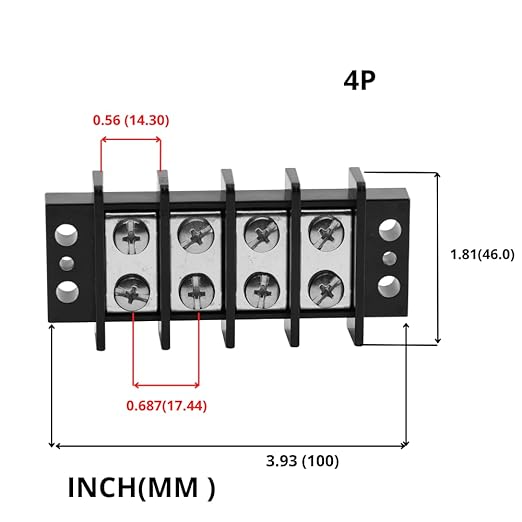

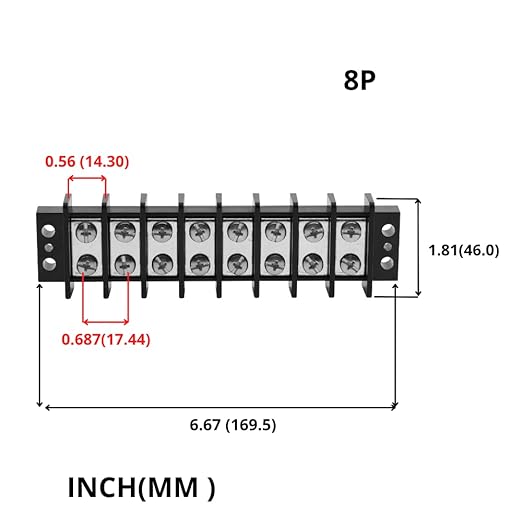

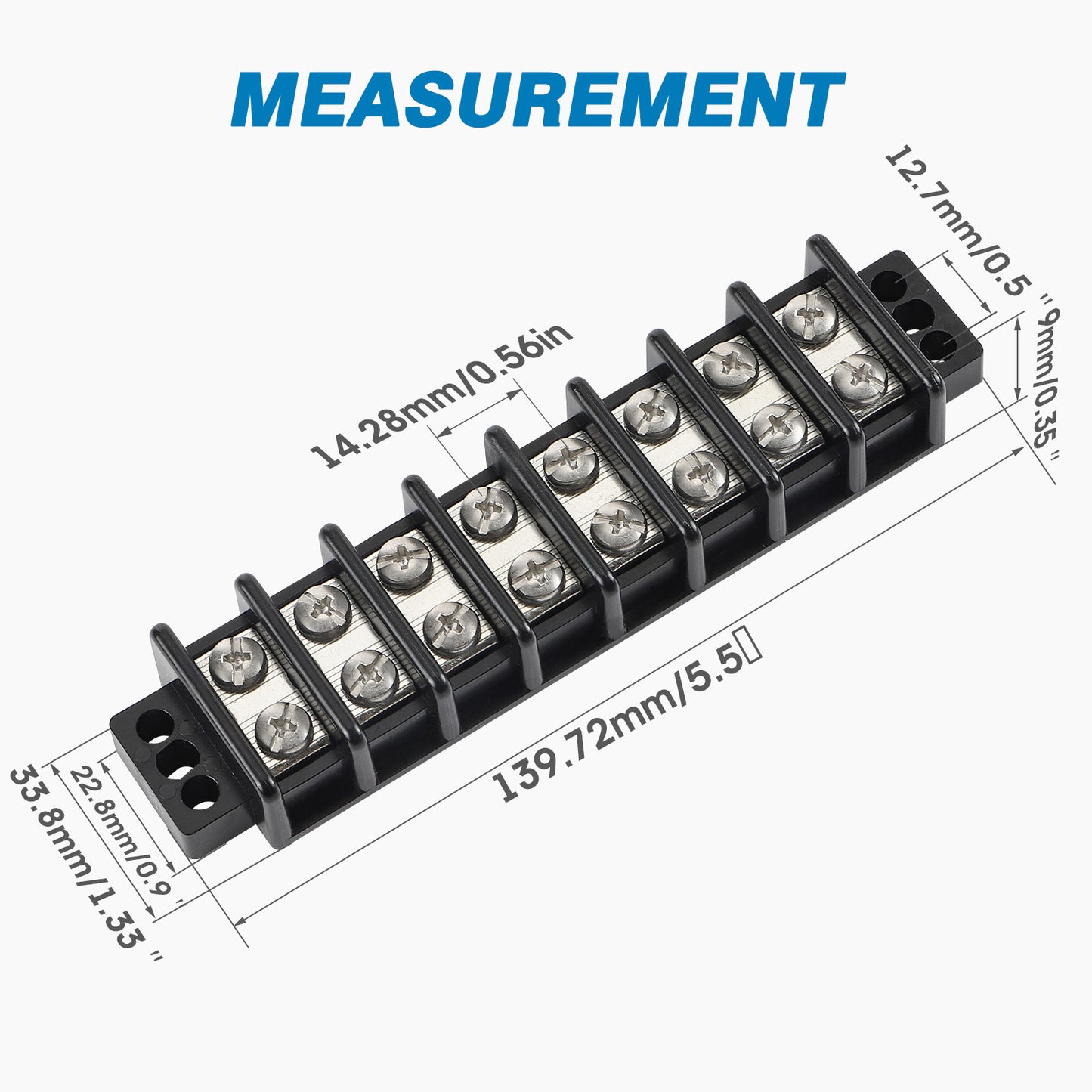

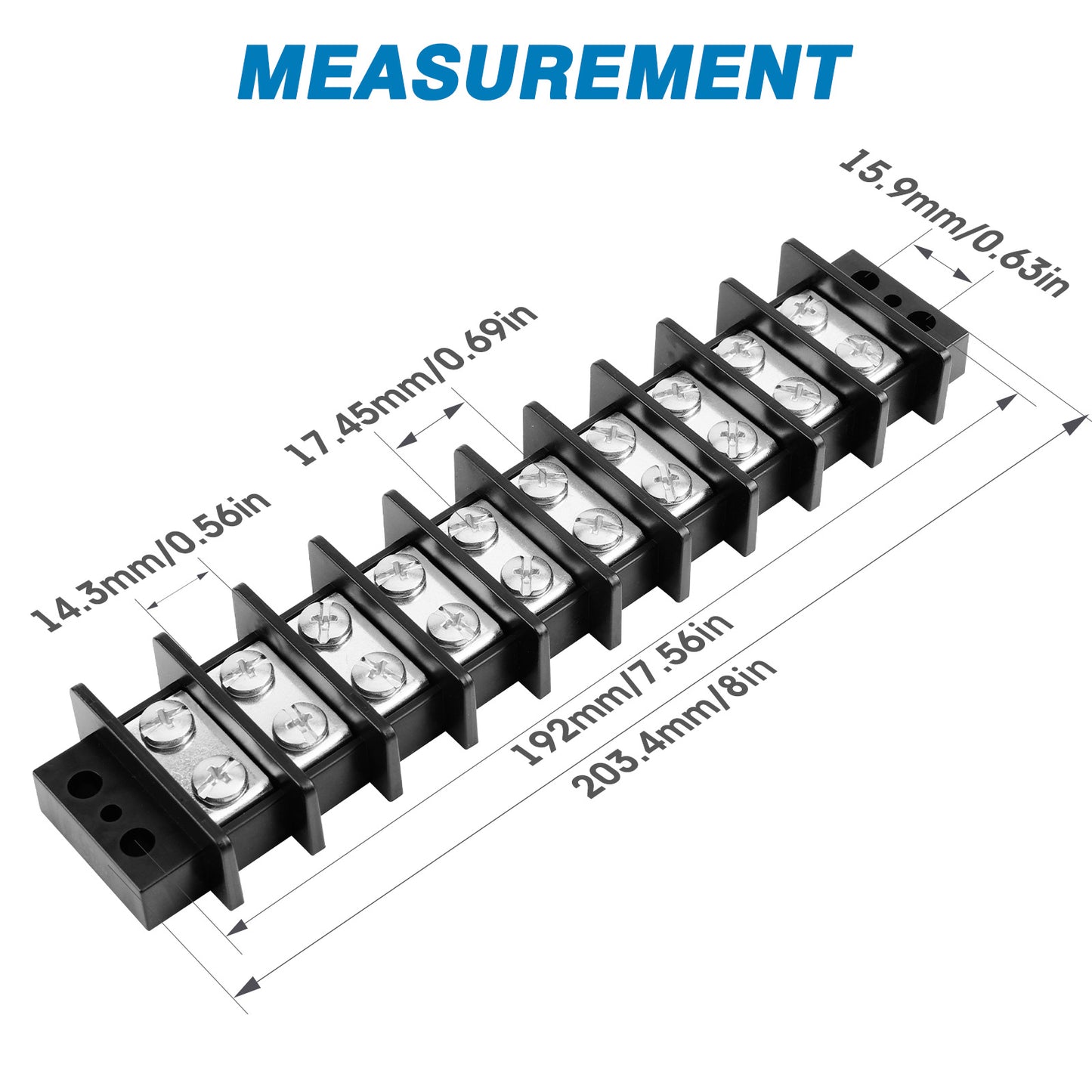

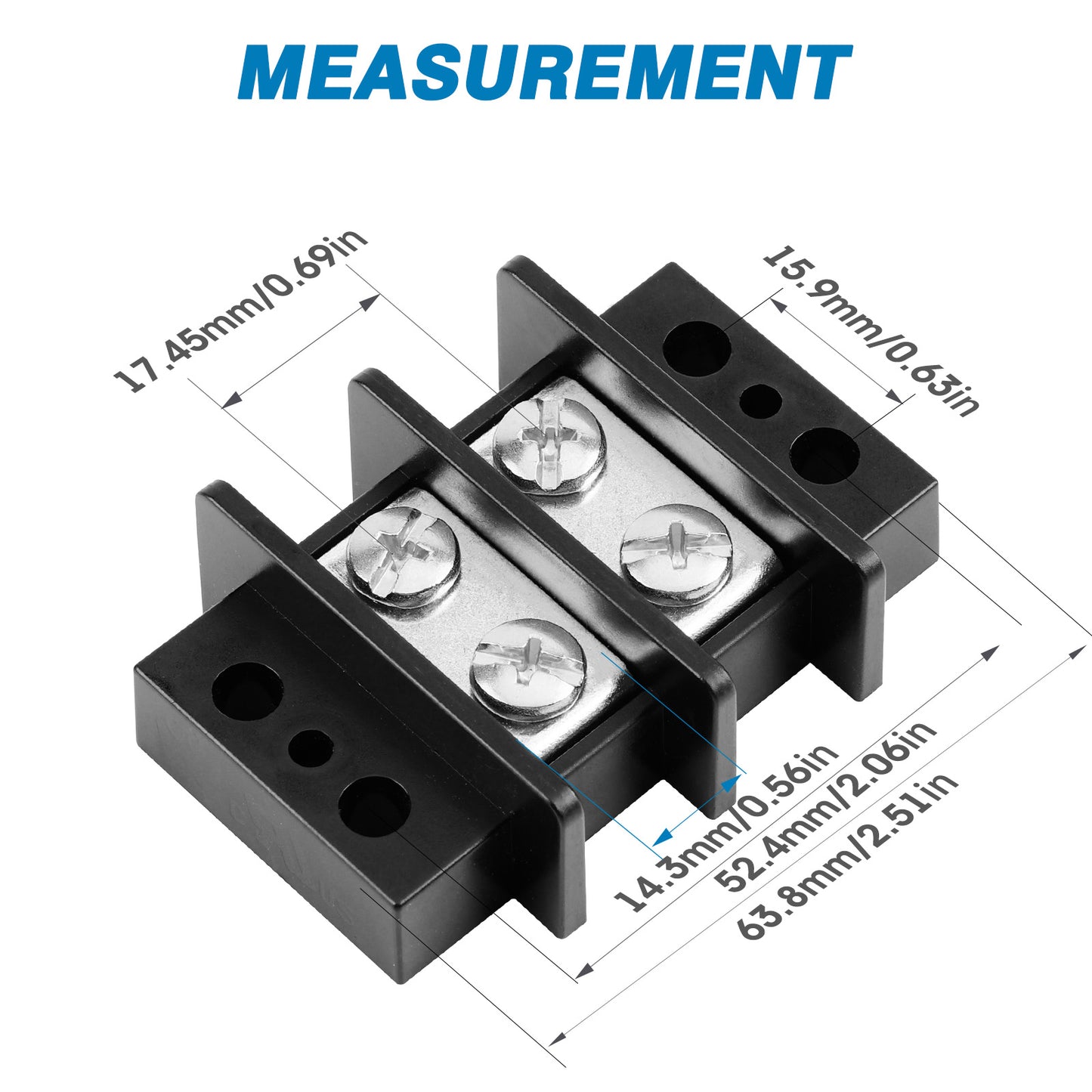

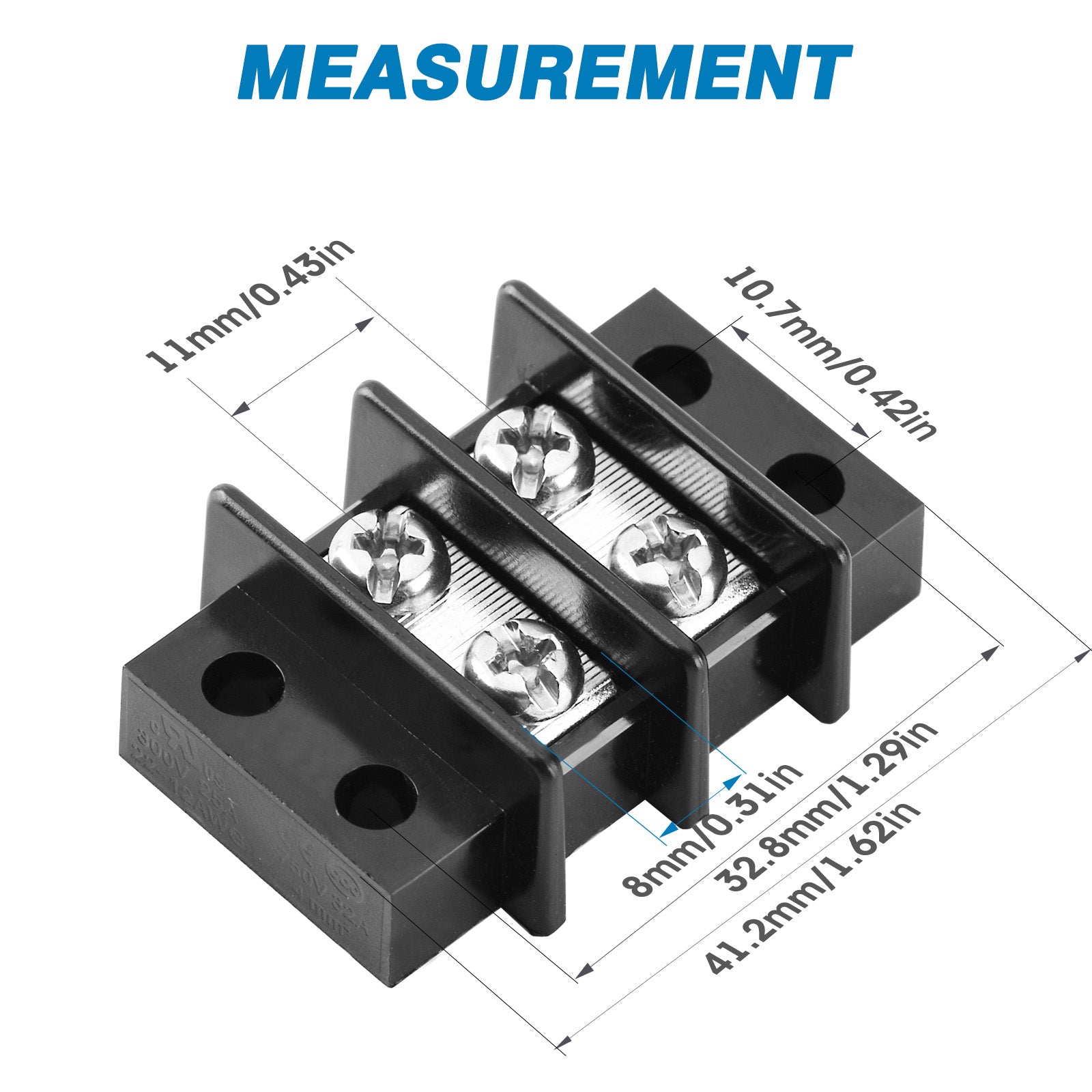

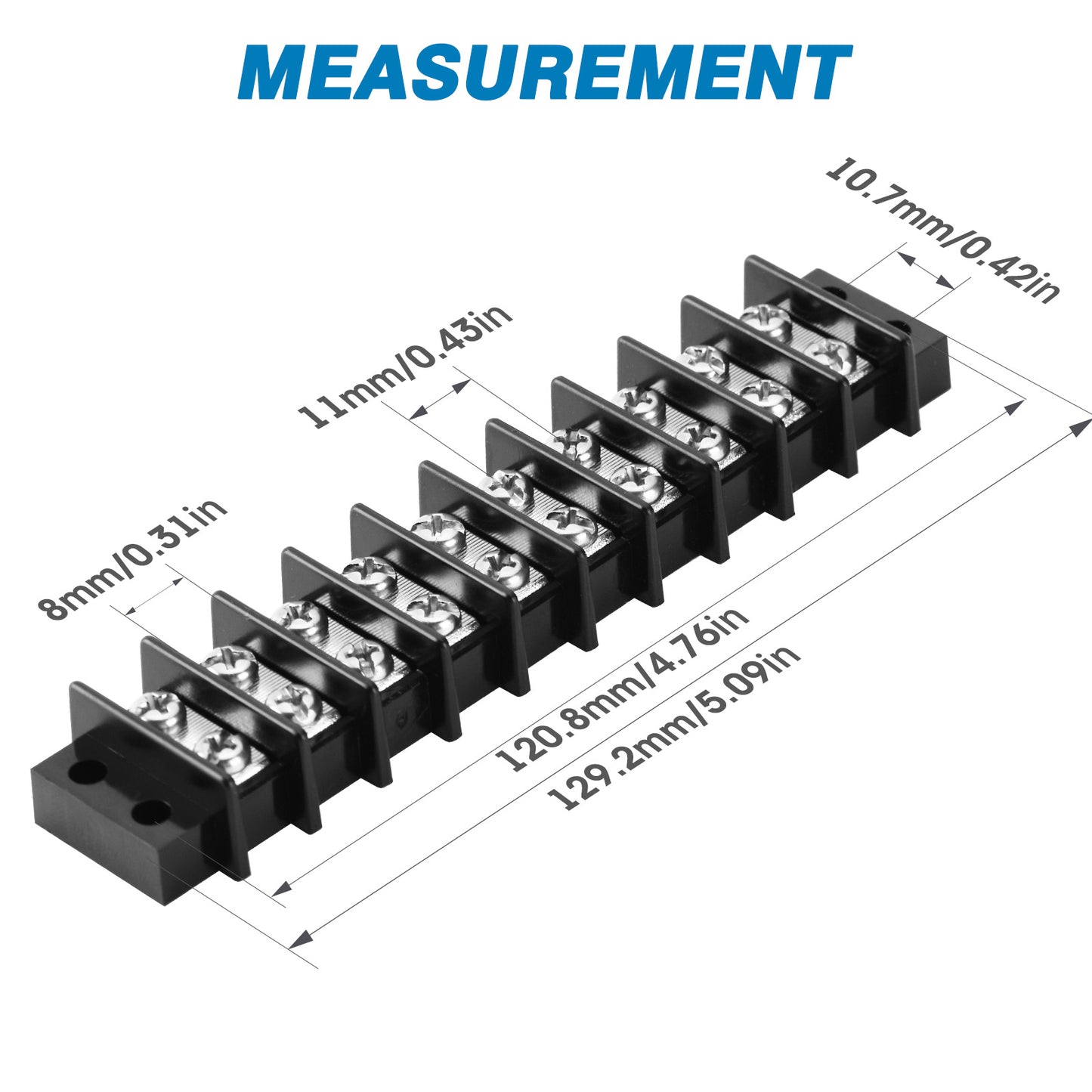

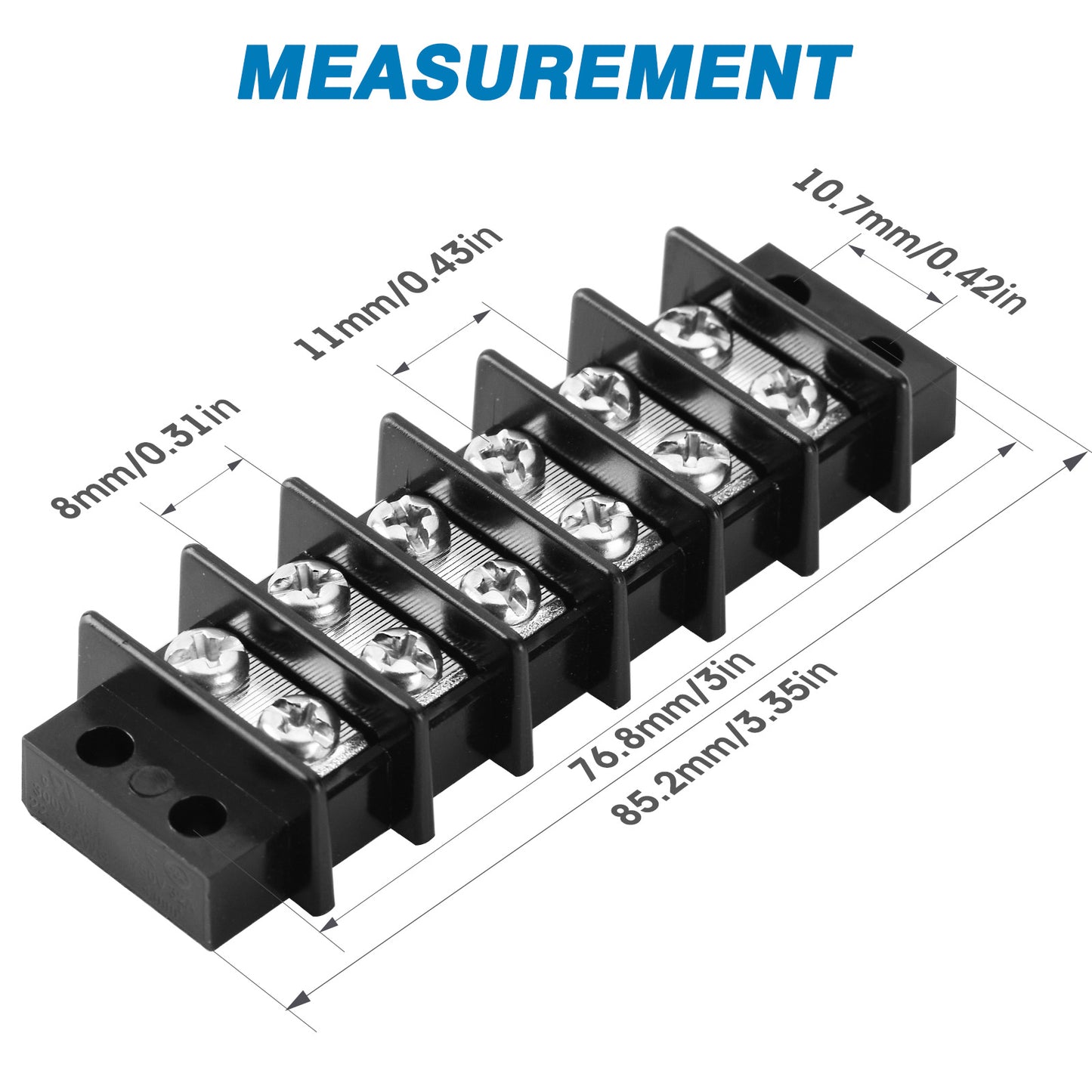

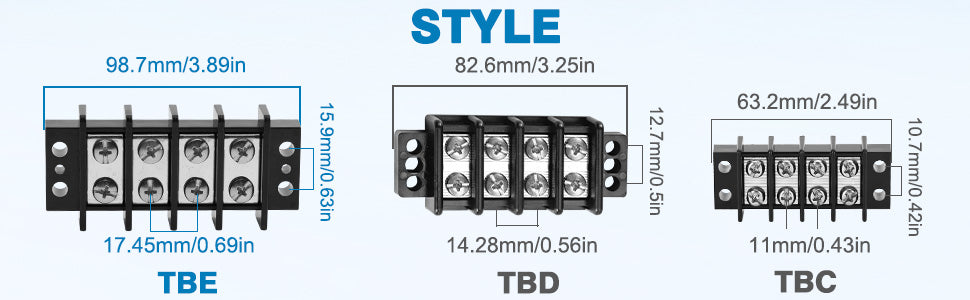

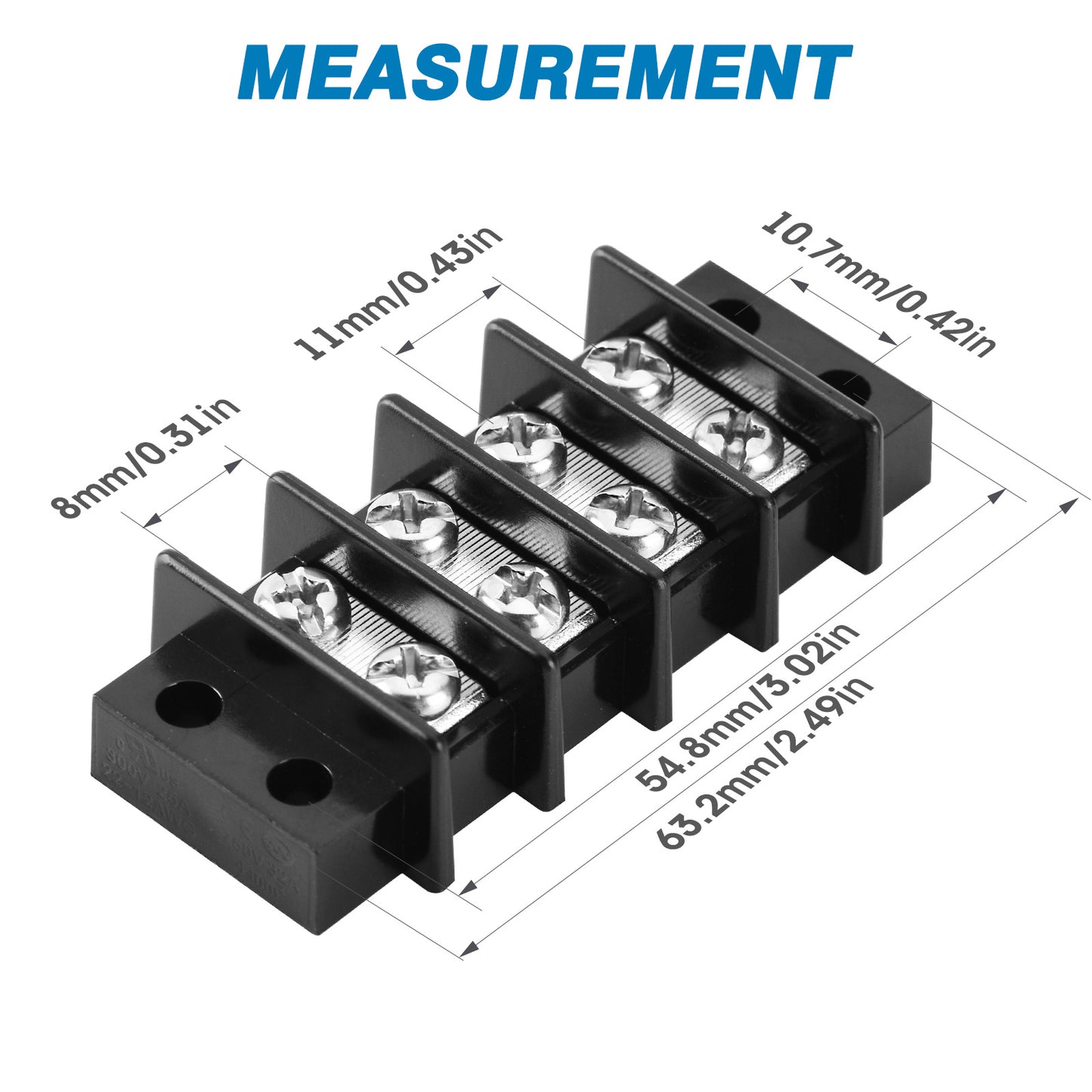

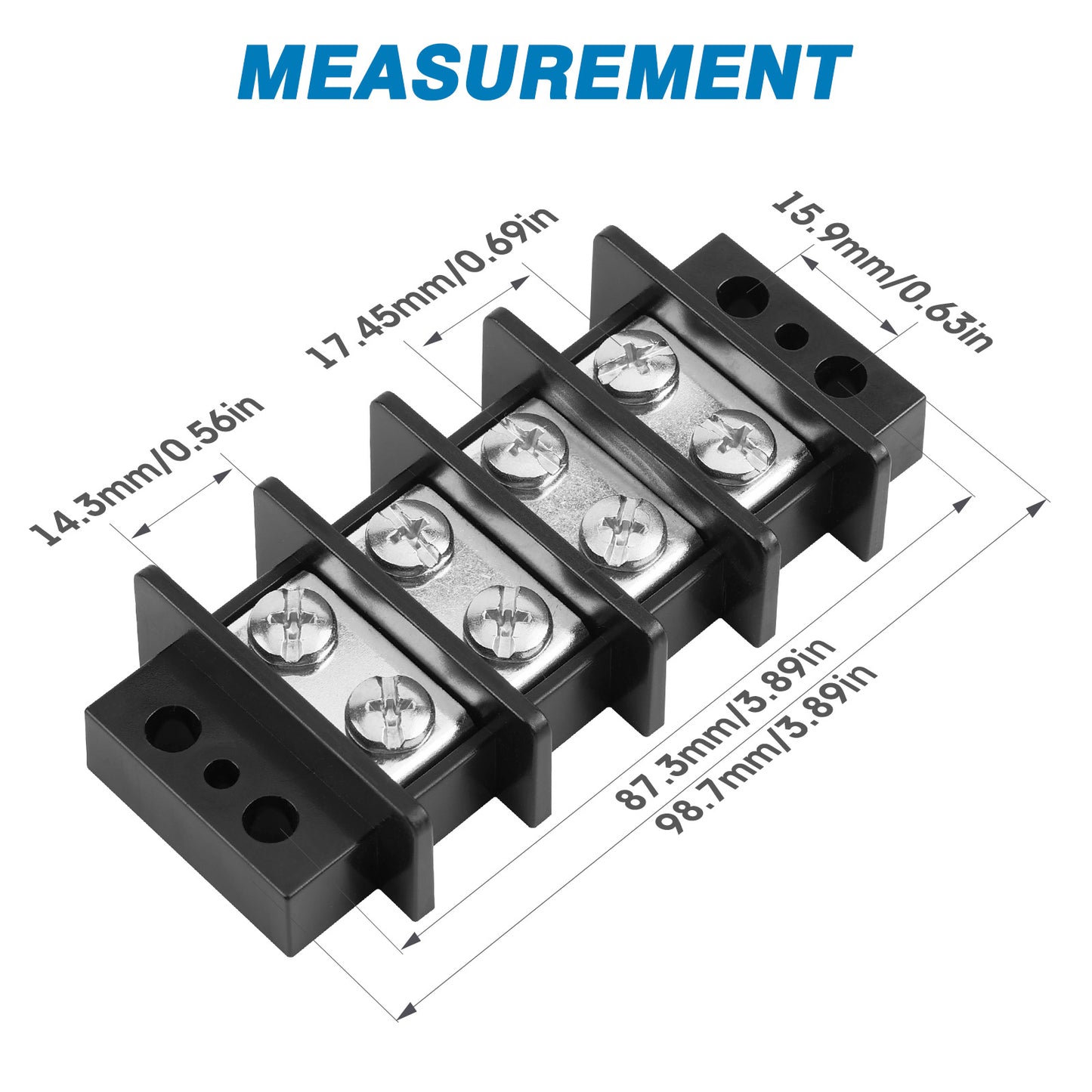

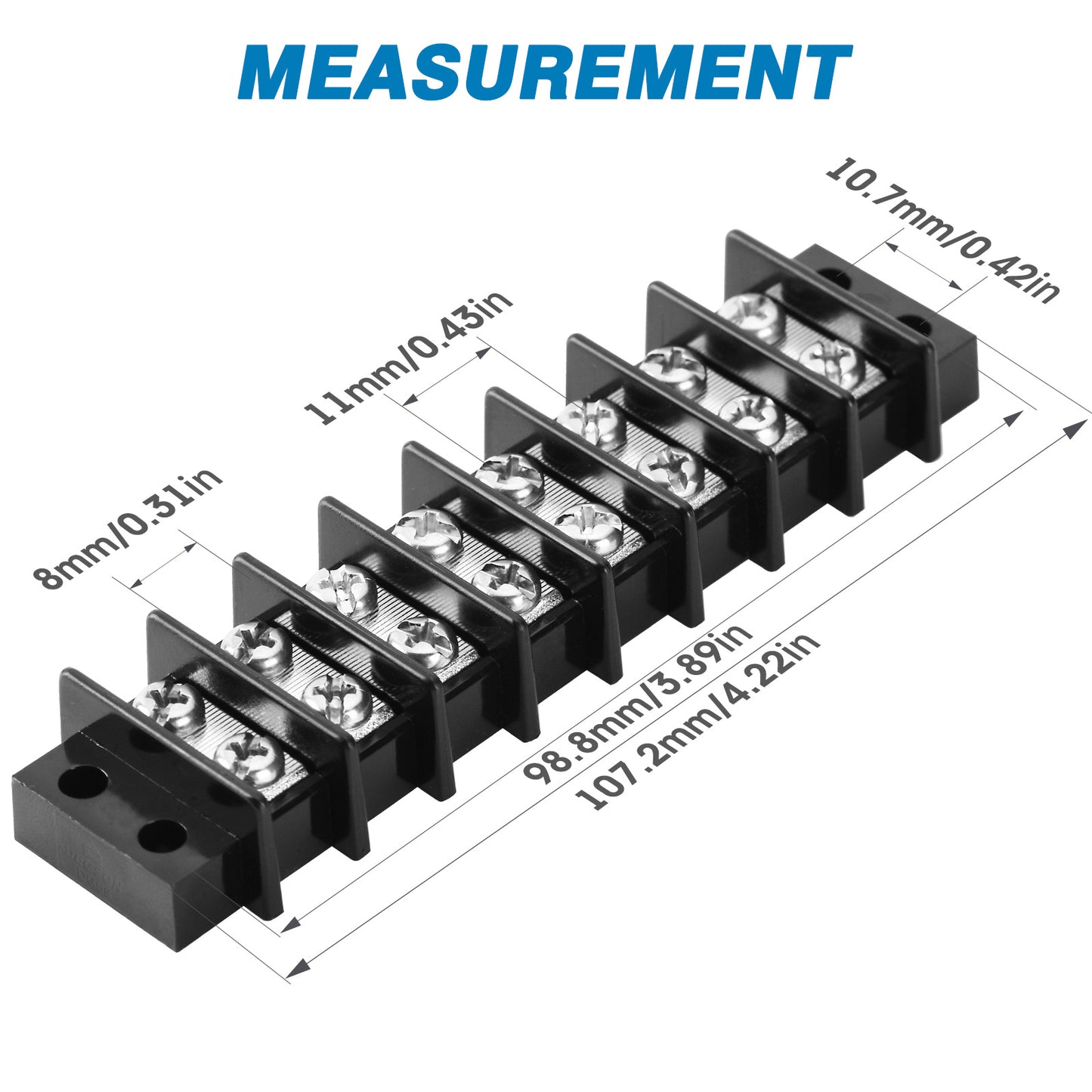

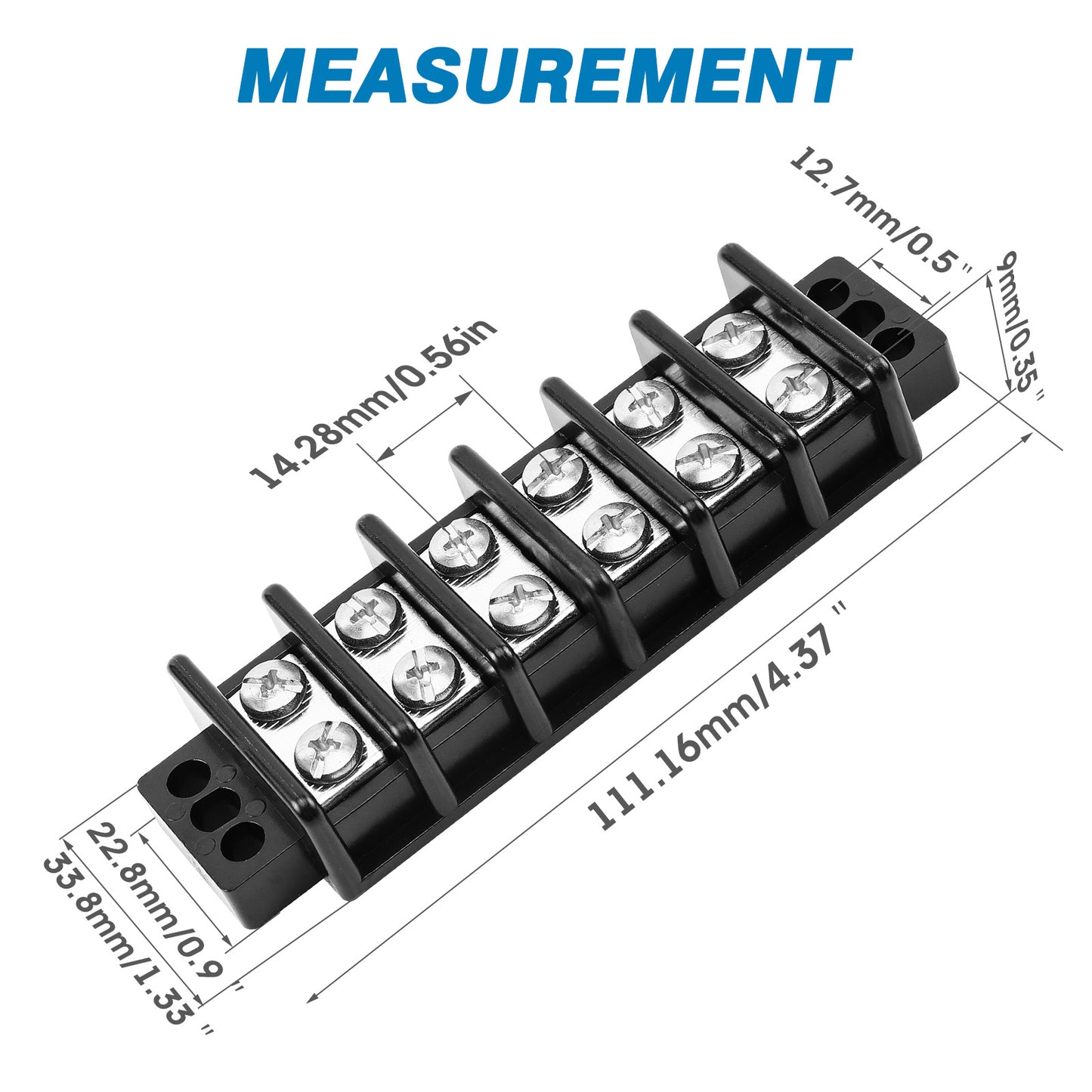

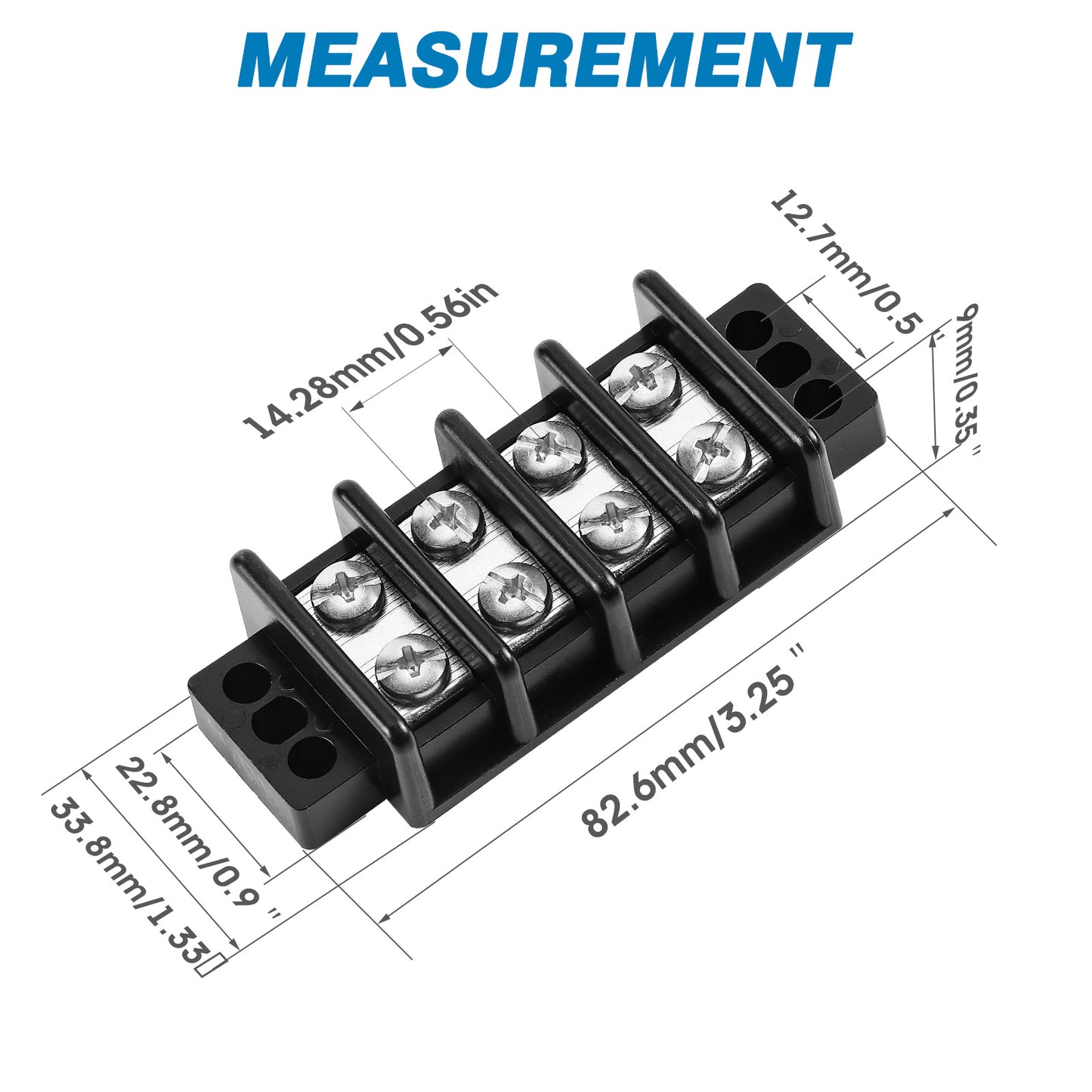

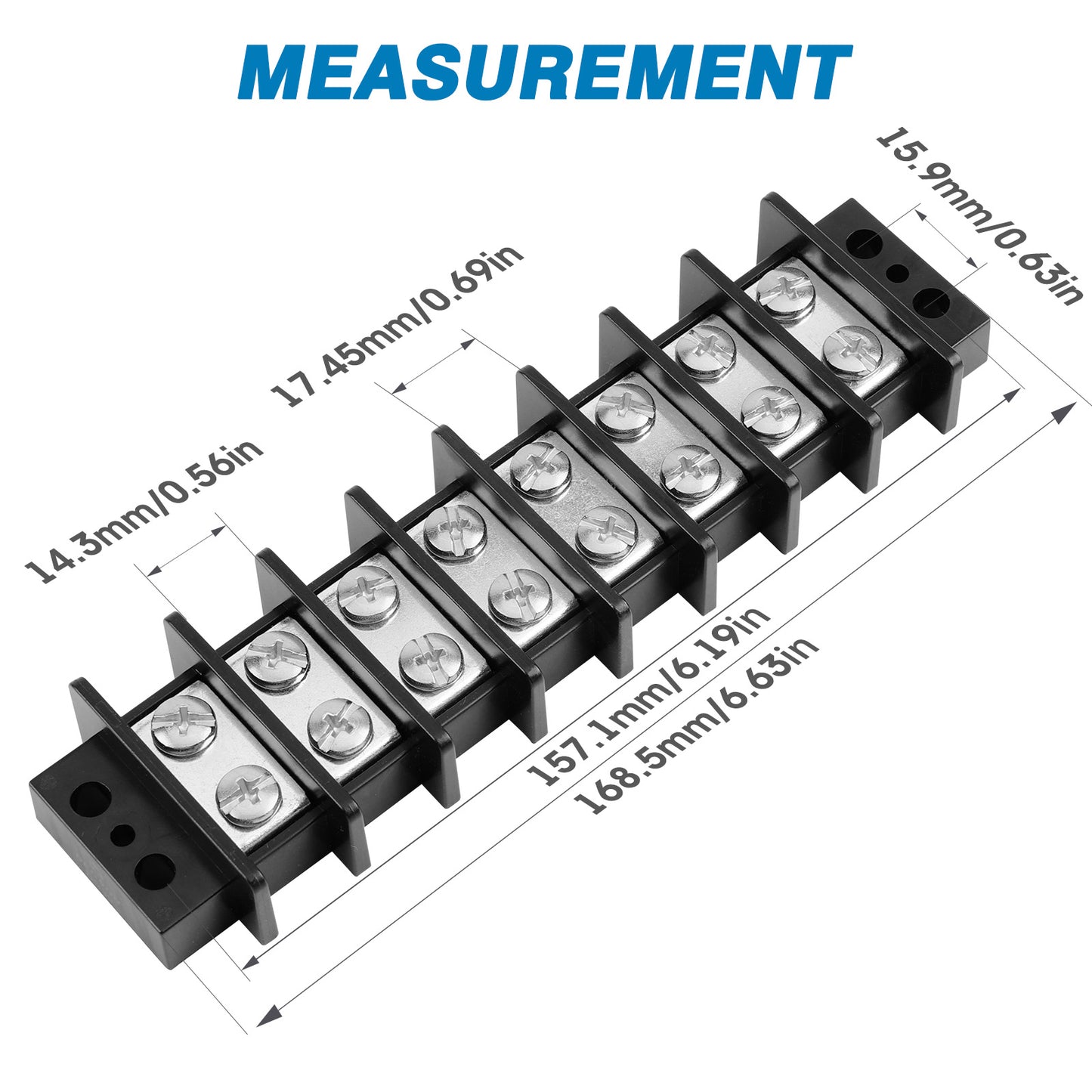

• Center Spacing:
  • TBC= 0.43" (11.0mm)

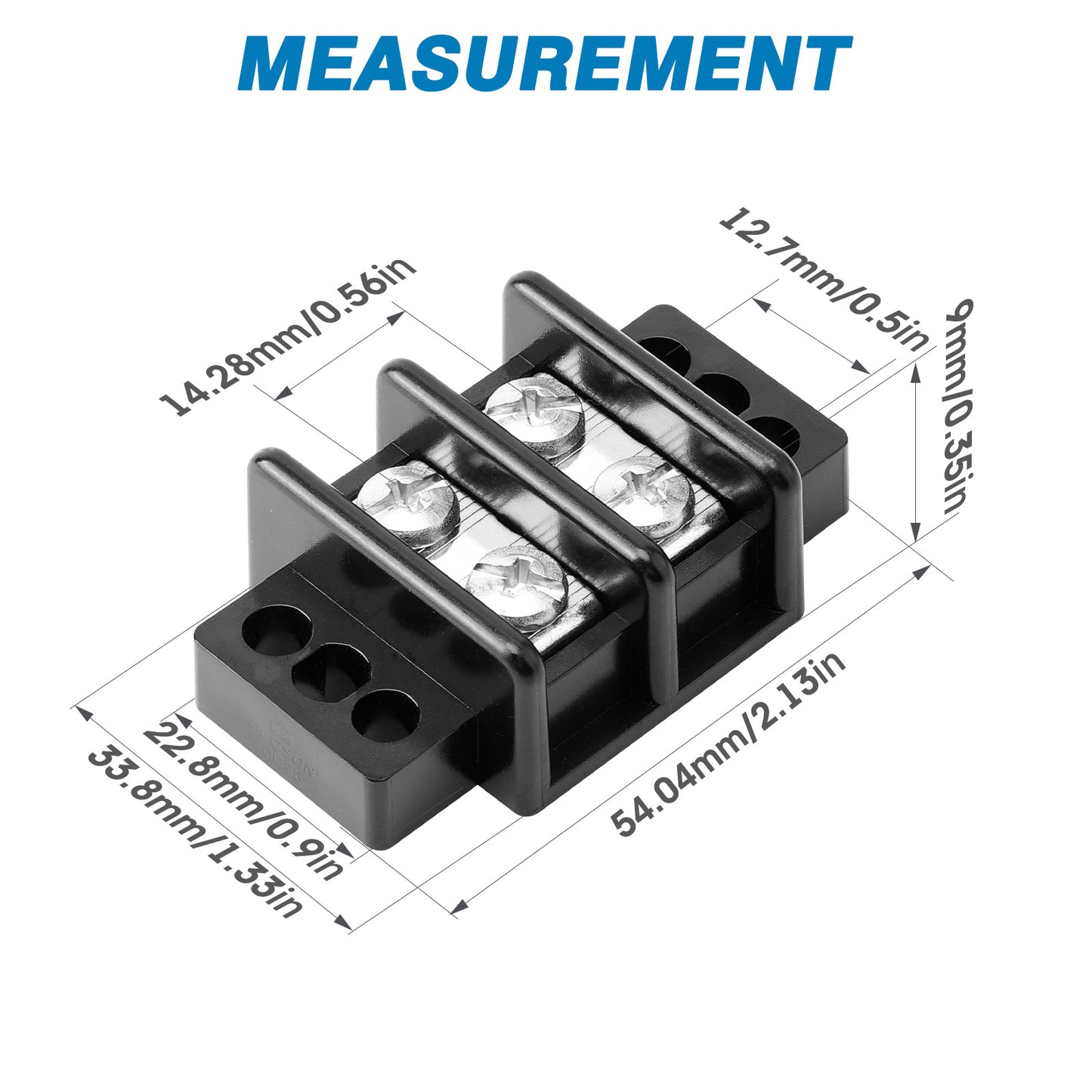

  • TBD= 0.56" (14.28 mm)

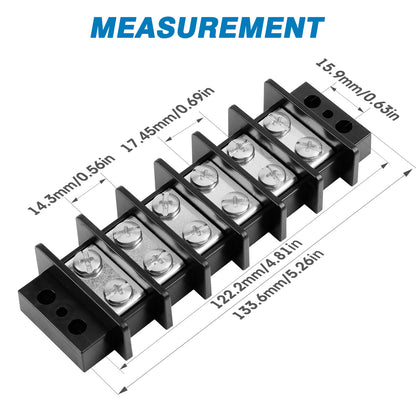

  • TBE= 0.69" (17.45 mm)
• Rated Voltage/Current:
  • TBC, 25A/300V
  • TBD, 30A/600V
  • TBE, 75A/600V
• Torque Value: M4, 10.53 lb.in
  • TBC=M3.5, 9 lb.in
  • TBD=M4, 10.53 lb.in
  • TBE=M4, 10.53 lb.in
• Wire Range:
  • TBC=12-22 AWG
  • TBD=10-22 AWG
  • TBE= 4-14 AWG
